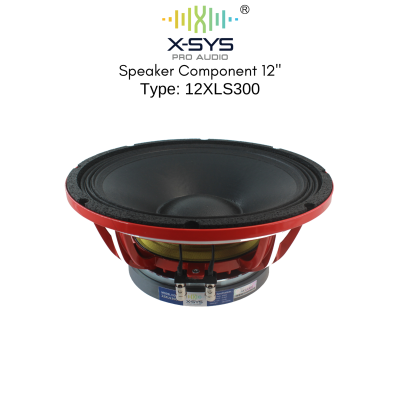

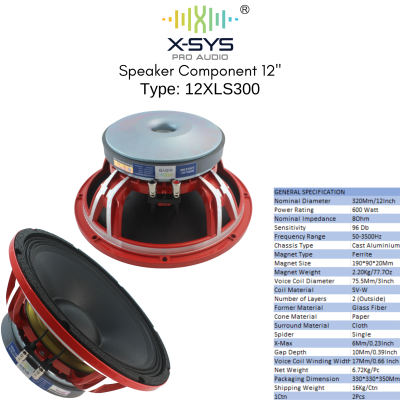

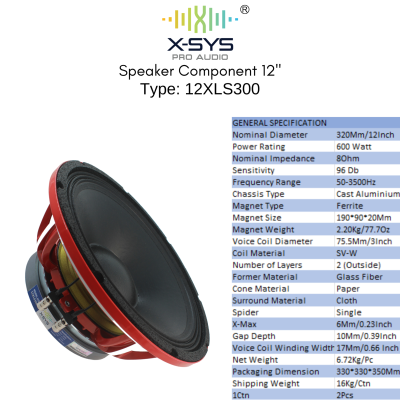

SPEAKER COMPONENT XSYS 12Inch TYPE 12 XLS300

GENERAL SPECIFICATION

Nominal Diameter : 320Mm/12Inch

Power Rating : 600 Watt

Nominal Impedance : 80hm

Sensitivity : 96 Db

Frequency Range : 50-3500Hz

Chassis Type : Cast Aluminium

Magnet Type : Ferrite

Magnet Size : 190*90*20Mm

Magnet Weight : 2.20Kg/77.70z

Voice Coil Diameter : 75.5Mm/3Inch

Coil Material : SV-W

Number of Layers : 2 (Outside)

Former Material : Glass Fiber

Cone Material : Paper

Surround Material : Cloth

Spider : Single

X-Max : 6Mm/0.23Inch

Gap Depth : 10Mm/0.39Inch

Voice Coil Winding Width : 17Mm/0.66 Inch


Net Weight : 6.72Kg/Pc

Packaging Dimension : 330*330*350Mm

Shipping Weight : 16Kg/Ctn

1Ctn : 2PCS
