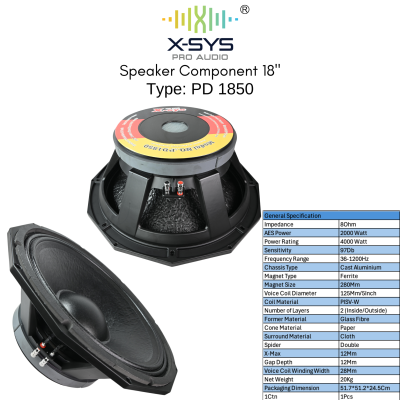

General Specification
Impedance : 8 Ohm
AES Power : 2000 Watt
Power Rating : 4000 Watt
Sensitivity : 97Db
Frequency Range : 36-1200Hz
Chassis Type : Cast Aluminium
Magnet Type : Ferrite
Magnet Size : 280Mm
Voice Coil Diameter : 125Mm/5Inch
Coil Material : PISV-W
Number of Layers : 2 (Inside/Outside)
Former Material : Glass Fibre
Cone Material : Paper
Surround Material : Cloth
Spider : Double
X-Max : 12Mm
Gap Depth : 12Mm
Voice Coil Winding Width : 28Mm
Net Weight : 20Kg
Packaging Dimension : 51.7*51.2*24.5Cm
