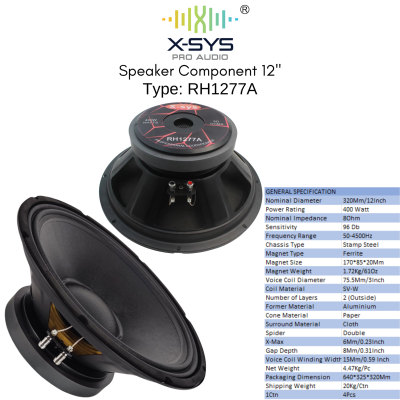

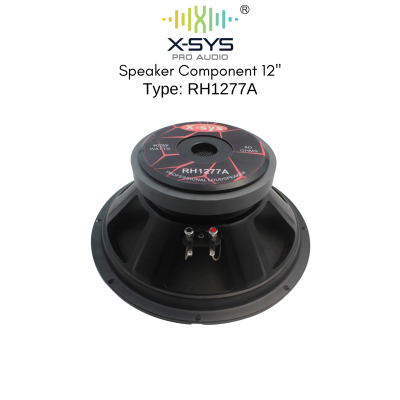

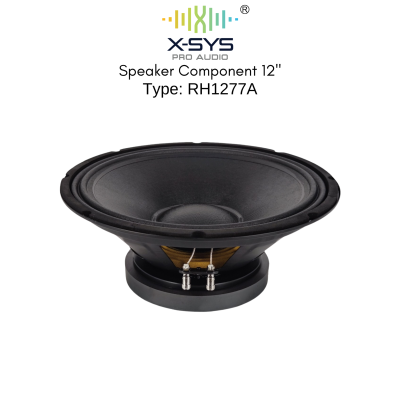

SPEAKER COMPONENT XSYS 12 Inch TYPE1277A

GENERAL SPESIFICATION
Nominal Diameter : 320mm/12 Inch
Power Rating : 400 watt
Nominal Impedence : 8 Ohm
Sensitivity : 96 Db
Frequency Range : 50-4500Hz
Chassis Type : Stamp Steel
Magnet Type : Ferrite
Magnet Size : 170x85x20 Mm
Voice coil diameter : 75.5Mm/3 Inch
Coil Material : SV-W
Number Of Layers : 2(outside)
Former Material : Aluminium
Cone Material : Paper
Surround Material : Cloth
Spider : Double
X-max : 6Mm/0.23 Inch
Gap Depth : 8Mm/0.23 inch
Voice Coil Winding Width : 15Mm/0.59 inch
Net weight : 4.47Kg/Pc
Packaging Dimension : 640x325x320Mm
Shipping Weight : 20 Kg/Ctn
1Ctn : 4Pcs
