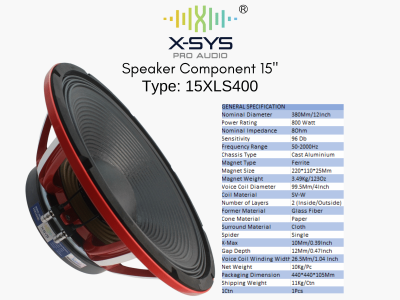

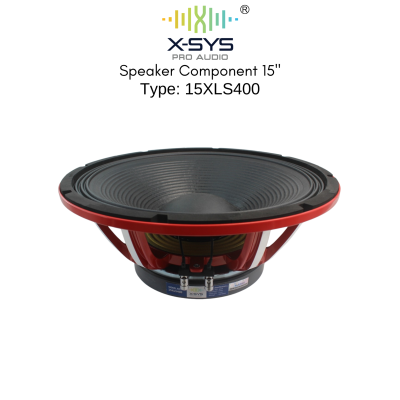

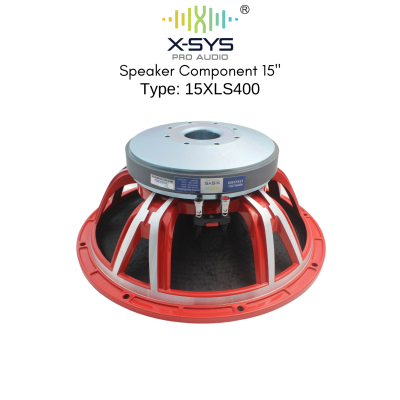

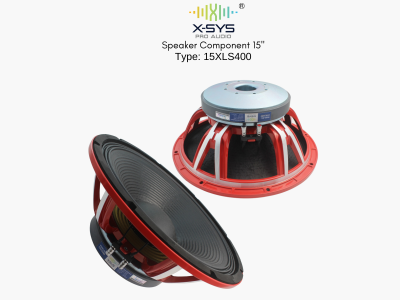

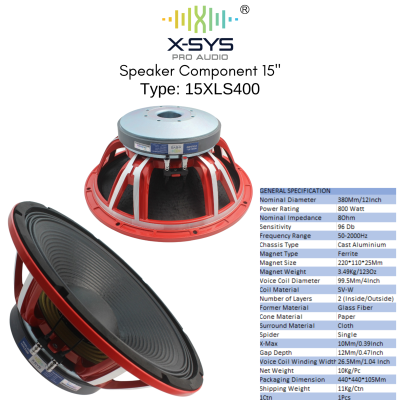

SPEAKER COMPONENT 15Inch 15XLS400

GENERAL SPECIFICATION
Nominal Diameter : 380Mm/12Inch
Power Rating : 800 Watt
Nominal Impedance : 80hm
Sensitivity : 96 Db
Frequency Range : 50-2000Hz
Chassis Type : Cast Aluminium
Magnet Type : Ferrite
Magnet Size : 220*110*25Mm
Magnet Weight : 3.49Kg/1230z
Voice Coil Diameter : 99.5Mm/4Inch
Coil Material : SV-W
Number of Layers : 2 (Inside/Outside)
Former Material : Glass Fiber
Cone Material : Paper
Surround Material : Cloth
Spider : Single
X-Max : 10Mm/0.391nch
Gap Depth : 12Mm/0.471nch
Voice Coil Winding Width : 26.5Mm/1.04 Inch

Net Weight : 10Kg/Pc
Packaging Dimension : 440*440*105Mm
Shipping Weight : 11Kg/Ctn
1Ctn : 1Pcs
